Universal CDI motorbike ignition coil
1 Year warranty
Primary ignition coil resistance: 0.3 Ohms
Secondary ignition coil resistance: 2350 Ohms

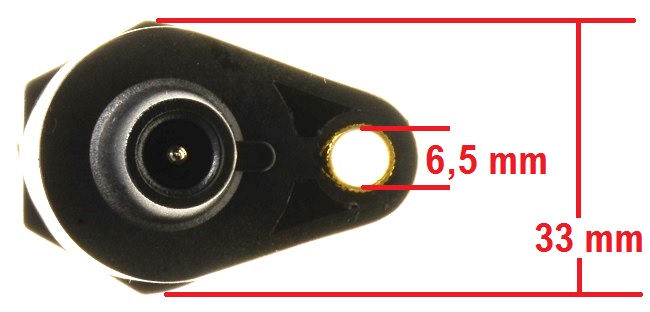

Hole Spacing: 1 hole

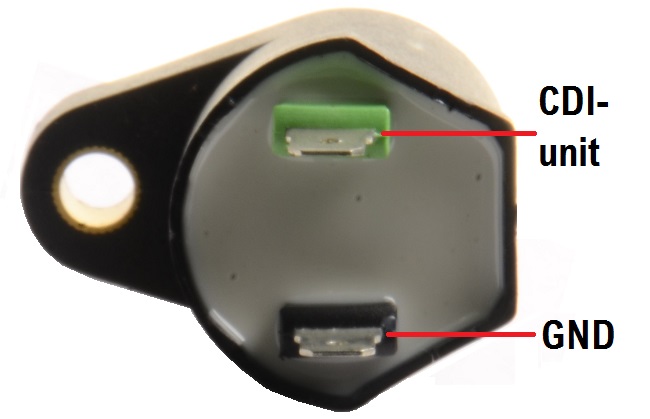

Terminals: 2

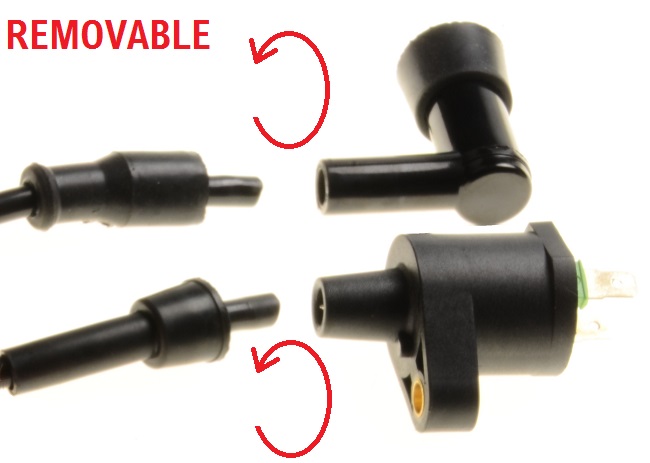

Removable spark plug lead
5k Ohm 90 Degrees spark plug cap (removable)
1 Year warranty
Among other things for:
Honda XL500R ignition coil 1982
Honda XL500S ignition coil 1979 1980 1981
Honda XR500R ignition coil 1983 1984
Honda XL600R ignition coil 1983 1984 1985 1986 1987
Honda XL 600 V Transalp 1991-1994 (XL600V PD06) Ignition Coil (MP02)
Honda XRV650 XRV 650 Africa Twin RD03 V-twin ignition coil 1988 1989 1990
Honda XRV750 XRV 750 Africa Twin RD04 V-twin ignition coil 1990 1991 1992
Honda XRV750 XRV 750 Africa Twin RD07 V-twin ignition coil 1993 1994 1995-2003
Yamaha XT600E ignition coil 1990 1991 1992 1993 1994 1995
We manufacture a wide range of electrical components to fit new and older Japanese and European motorcycles.
All products are made from high quality materials which have proven to be very reliable.
Our products offer higher power output compared with OEM parts, for a better price.
Number on CDI-ignition coil:
30550-MM9-000
30550MM9000
30540-MS8-000
30540MS8000
CDI-IG51 / 713826
TEC Japan
MP02
Team-Carmo
Digital ignition systems.
Our digital ignition systems come with 3 years warranty. Production errors, quality issues and internal problems are covered by this warranty.
The Carmo digital ignition systems are protected against high voltage peaks, defective HT coils and reverse battery connection.
This protection means that the Carmo digital ignition will not be damaged immediately in case of faulty electronics in your motorcycle.
Long term use of a motorcycle with faulty electronics may still result in damage to the Carmo digital ignition system.
This means that without solving the electrical issue the Carmo digital ignition could break down after a while.
If research shows that your Carmo digital ignition was damaged by faulty electrical parts, the warranty rights will not be valid.
If this situation occurs we will attempt to repair your ignition system in order to keep the costs as low as possible.
If the system is beyond repair a new product will be offered at a reduced price.
In all cases we will try our best to offer an acceptable solution.
Testing your original ignition module is free of charge when purchasing one of our replacement systems.
During the test we are often able to find out what caused your original module to break down.
This way you will know for sure if your original module really needs replacement, and you’ll be able to solve other electrical issues that may not be known yet.
Team Carmo.
